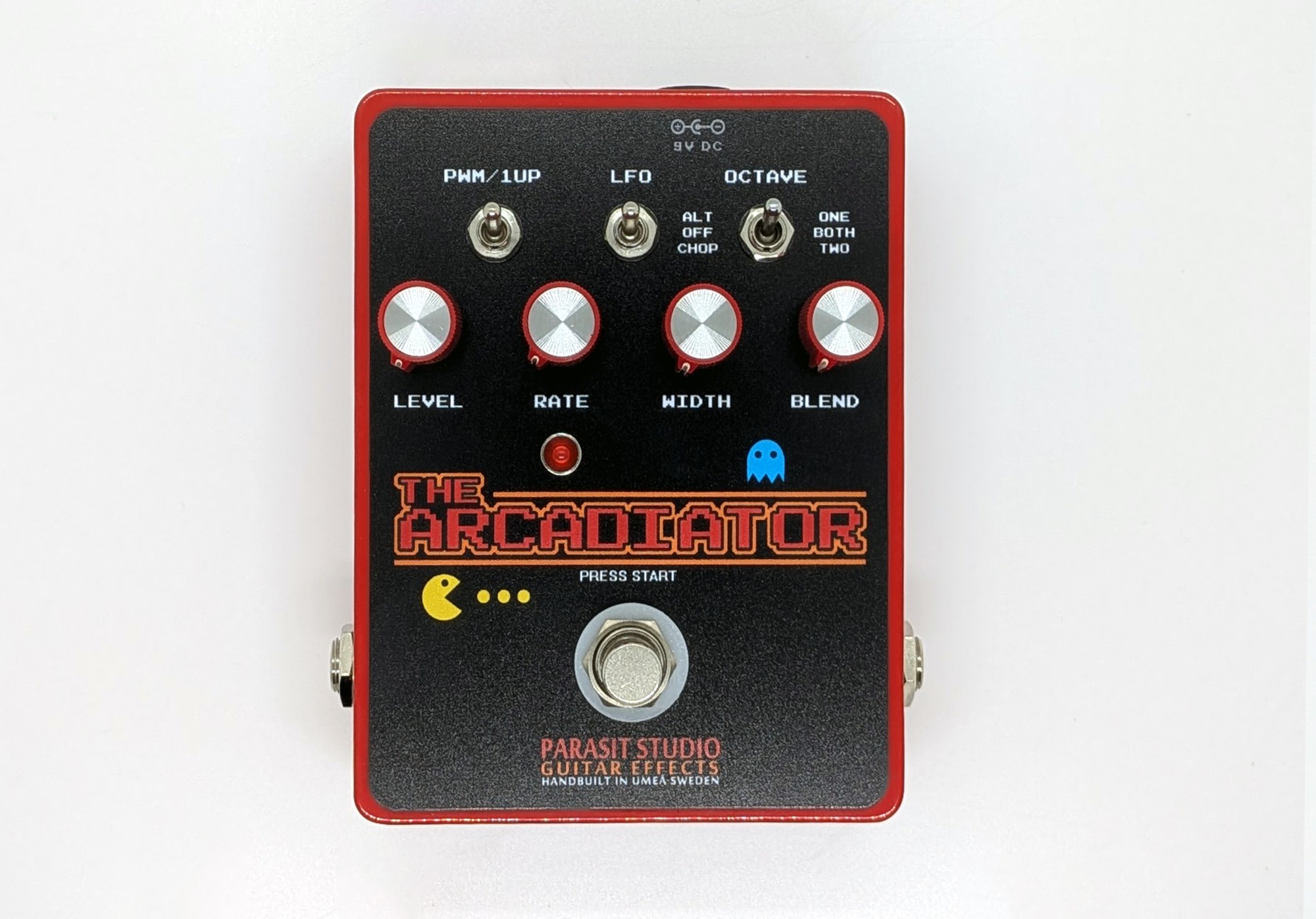

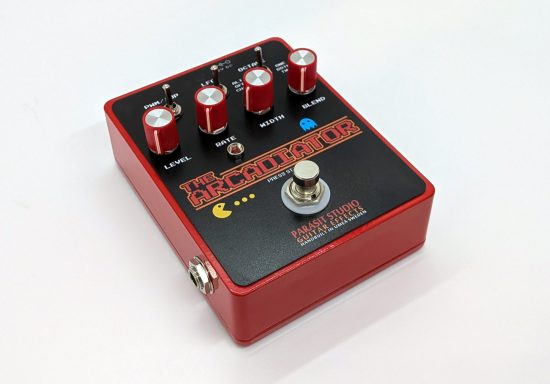

THE ARCADIATOR
The Arcadiator is a CMOS based fuzz that has become a favourite within the DIY community. It's also avaliable as a fully assembled pedal.
It does square wave fuzz, octave down, octave up, pulse width modulation, alternating octaves modulation and more. From brutal fuzz to crazy retro game sounds.

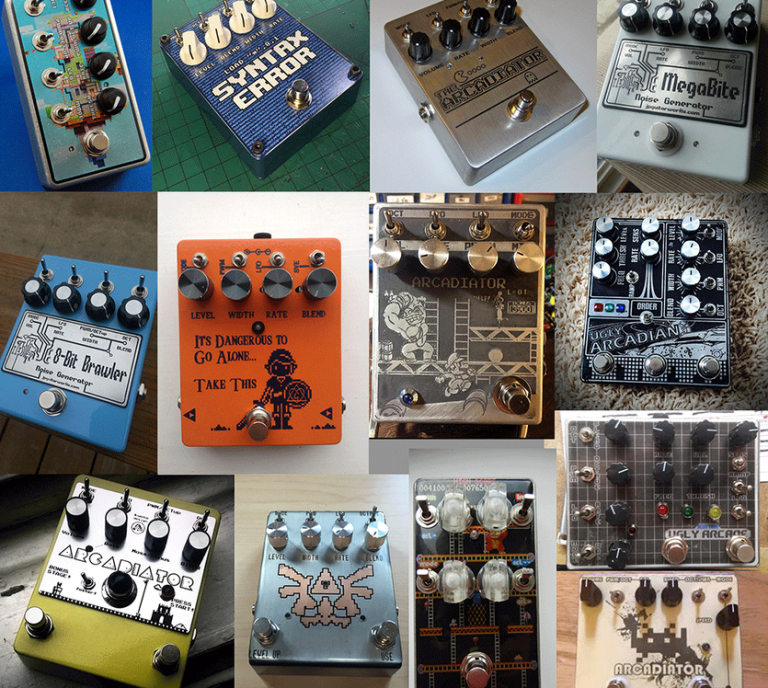

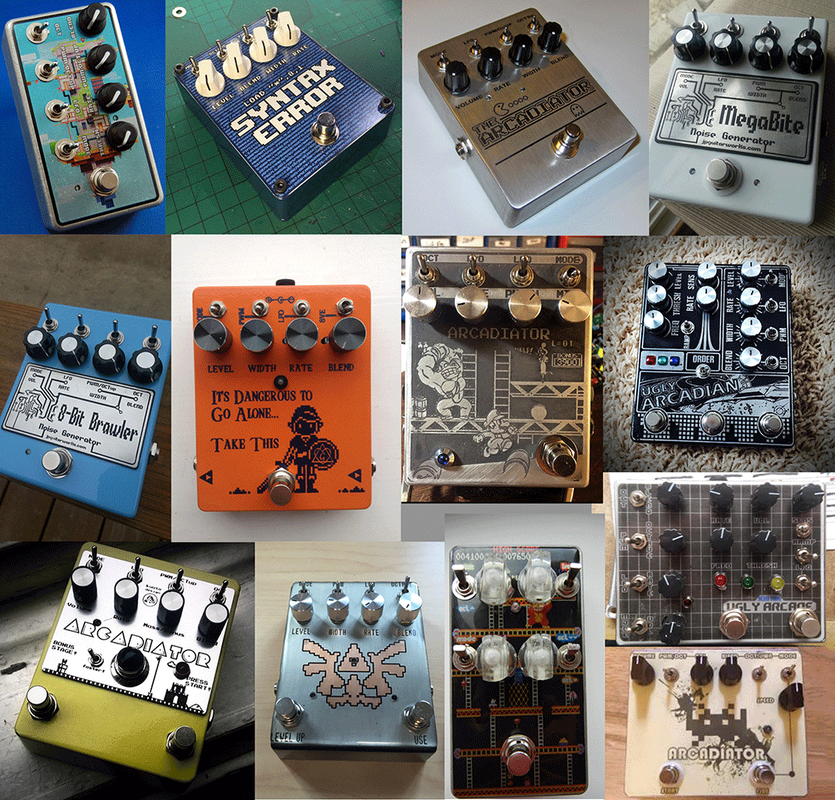

A collection of Arcadiator pedals built by other people.
- PCB available in the shop

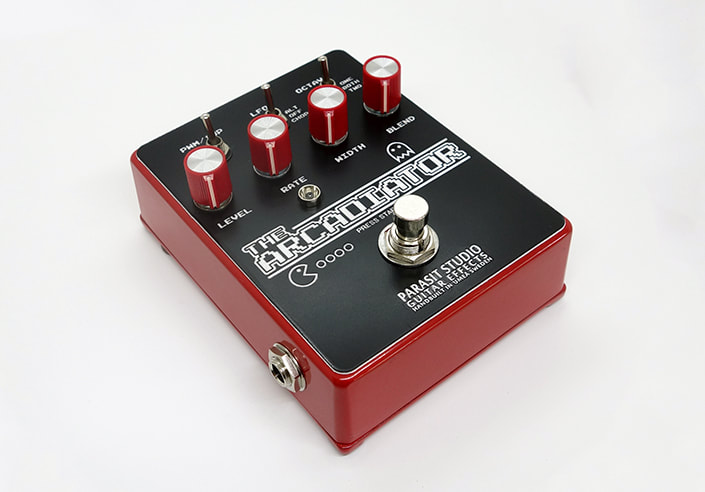

- Fully assembled pedal available in the shop
- Build document PDF (current version 3.0)
- Stripboard layout PDF (version 1.0)
DIY kits available from
Testing the Arcadiator together with the modboard (an optional LFO daughterboard). It modulated the pulse width, in parallel with the width potentiometer.
